Law of Mono-bi-poly System Evolution and Digital Convergence

Размещено на сайте 02.04.2009.



ПРЕДИСЛОВИЕ КАФЕДРЫ ПРОГНОЗОВ

Добрый день, дорогие читатели,

Сегодня я представляю одну из работ недавней конференции, проходившей в Южной Корее (смотри Отчет о проведении конференции ASIA TRIZ 2009), связанную с прогнозом развития мобильных телефонов. Работа «Закон развития моно – би – поли систем и цифровой конвергенции» была выполнена в национальном университете Чеджу – До двумя авторами, которых вы можете видеть на фотографии.

Переводить такие работы сложно, поэтому я просто перескажу моменты, наиболее интересные и значимые в плане развития теории.

Также прилагаю текст статьи на английском языке.

Авторы использовали 9 экранную систему «Прошлое – Настоящее – Будущее» для анализа развития мобильных телефонов.

Было использовано содержание некоторых законов из системы классической ЗРТС (закономерности развития технических систем) и системы стандартов, а также множество вполне разумных соображений, касающихся существующих у людей потребностей.

Журнал «Методолог» и КП, как одно из его подразделений стремятся выполнить миссию слияния разных культур использования ТРИЗ в прогнозировании. Эта публикация сделана именно в контексте этого намерения.

Пожалуй, это первая публикация «по настоящему» иностранных ТРИЗ экспертов, которую «Кафедра прогнозов» делает за более чем 5 летнюю историю своего существования.

Текст статьи можно посмотреть самостоятельно, но я слушал и доклад, который раскрывает больше смыслов, чем есть в материале статьи. Поэтому я хотел бы своими словами описать те моменты, которые мне показались очень важными для развития инструментов прогнозирования вообще.

Приведу очень краткий конспект своего понимания этого материала.

1. Авторы предлагают серьёзно задуматься о том, как принцип объединения «моно – би – поли» может проявляться на микроуровне. Согласитесь, что это замечание правильное, потому что сценарии развитии техники микроуровня вполне могут оказаться специфичными.

Основатель ЗРТС, Генрих Альтшуллер указывал на это тем, что делил все выявленные им закономерности на те, которые действуют всегда («статика» и «кинематика») и те, которые характерны для новейшей истории – «динамика». Именно к этой части был отнесён Закон перехода на микроуровень.

ЗРТС как научная дисциплина рано или поздно должна дать описание этих специфичных сценариев, но для начала нужно сформулировать первоначальный подход, установку на проведение именно этих исследований. Авторы это сделали, говоря о феномене «цифровой конвергенции». Фактически под термином «цифровая конвергенция» авторы подразумевают процессы, описываемые законом перехода на микроуровень, которые тоже повторяют тренды типа «моно – би – поли», но в области цифровых технологий обработки сигналов в микроэлектронике. А это очень важно.

2. Законы развития техники действуют не по одиночке и не последовательно, а в виде системных сочетаний. Можно предложить простую аналогию.

Если каждая закономерность это «нота», то реальное проявление закономерностей всегда – «аккорд». Именно с позиции этого подхода авторы разрабатывали свои конструкции предположений или прогнозные образы. В работе дан опыт совместного применения законов перехода на микроуровень + повышения идеальности + повышение динамизации и другие сочетания.

И это для развития аппаратной части ЗРТС тоже очень важно.

Первый посыл на изучение «аккордов, пусть и не в ЗРТС», появился еще в далекие семидесятые годы, тогда, когда возникло представление о том, что приемы не работают в одиночку. Тогда появилось понятие сложных приемов, объединяющих в себе несколько простых. Были среди тех приемов и такие, на основе которых потом появились закономерности. Обсуждается тема комплексности применения ЗРТС среди разработчиков в последнее время. Я много думал на эту тему и встретив такой способ построения прогнозных образов в чужой работе, не мог не обратить на это своё внимание.

Ничего мы пока не знаем достоверно про «аккорды», но если разбираться в этом на конкретном материале, то через какое –то количество проведённых исследований мы сможем понимать, как и когда они берутся.

Авторы – наши коллеги исследователи из корейского университета попытались применить эти два соображения «вручную», опираясь только на формат системы многоэкранного мышления. Получилось сложно и не очень понятно. Но ведь все системы, рождаясь, сначала выглядят неуклюже и даже уродливо, а потом стремительно улучшают свои потребительские свойства. Важно, что бы кто-то первый их сделал, не побоявшись критики…

Приятного чтения,

Ведущий рубрики КП,

Юрий Даниловский.

Law of Mono-bi-poly System Evolution and Digital Convergence

Si NaeKang

Cheju National University, Korea

sinae-k@hanmail.net

JungSukHyun

Cheju National University, Korea

jshyun@cheju.ac.kr

(The issues of digital convergence)

Digital convergence is social phenomena, which is changing society and industry on a large scale. It can strengthen the system and produce a large synergistic effect. Infinite possibilities can be discovered by analyzing the trends of digital convergence, predicting its future, andselecting the appropriate system functions to combine.

In this paper, what is the reason of trends in digital convergence

is explained and the future of it is predicted with applying mono-bi-

poly. And what should be considered for appropriate fusion in digital convergence is suggested.

1.Introduction to mono-bi-poly

First, mono-bi-poly is explained for applyngto Digital convergence.

1) The laws of technological system evolution included in mono-bi-poly

Mono-bi-poly refers to the concept that system performance at any stage of its evolution can be enhanced by system transition –combining the system with another system or systems, thus building a more complex bi-system or poly-system (This is the standard solution 3-1-1, the law of transition to a higher level system).

Examples of mono-bi-poly could include transitioning a one color ball point pen to apen with various colors –or perhaps adding post-it notes to a pen.

In mono-bi-poly, there are two trends of evolution. First is that bi-and poly-systems can be enhanced by further developing the links between their elements. (This is the standard solution 3-1-2, the law of increasing dynamism or flexibility, and the law ofincreasing degree of ideality.) Second is that bi-and poly-systems can be enhanced by increasing the differences between their elements. (This is the standard solution 3-1-3, the law of increasing degree of ideality). Thus mono-bi-poly includes the law of transition to a higher-level system, the law of increasing dynamism or flexibility, andthe law of increasing degree of ideality.

2) The reason why systems evolve into mono-bi-poly

The reason for combination is simple –to increase the system efficiency, and to decrease the cost and problems according to the law of increase of ideality.

There are countless potential functions of a system, depending on the circumstances. To be more specific, what we define as the function of a system increases with mono-bi-poly evolution.

3) The definition of system function

“Function is one of the countless features to be decided when comprising a system”

For instance, cell phones can act in various ways according to the situation, such as “calling a person”, “playing games”, “listening to music”, etc. Therefore, to predict the evolution of a system, first the functions of the system must bedefined. After that, the tools for the functions, the control unit, the product, the engine, and the transmission are to be decided. Each part can be decided in accordance with the function. If the function of the cell phone is decided as “communicating with people”, then the tool is the cell phone frame, the control unit is the input device, the product is the output device, the engine is the battery and the transmission is the semiconductor circuitry.

The above should be considered to predict the system function improvement or the direction of technology evolution. Multi-screen thinking can be used to analyze the circumstances of the system more visually.

2. Mono-bi-poly within Digital convergence

1) Mono-bi-poly within Digital Convergence

As described above, digital convergence is the combination ofvarious functions to a system, which is a typical example of mono-bi-poly. This is not a sudden or new phenomena, rather, it is a pattern in technology evolution, with a predictable development trend that has alreadybeen discovered. When digital convergence found in each field is analyzed, it can be noted that the trend of digital convergence has evolved according to the law of transition to higher level system , the law of increasingdynamism (flexibility), and the law of increasing degree of ideality to realize the IFR (ideal final result) of each system. Furthermore, mono-bi-poly predicts that the future of digital convergence is evolving toward an ubiquitous system.

2) Analyzing the trends of cell phone convergence

and predicting its futureby mono-bi-poly

If the function of the cell phone is decided as “communicating with people”, then the tool is the cell phone frame, the control unit is theinput device, the product is the output device, the engine is the battery and the transmission is the semiconductor circuitry.

①Input and out put data form:

-Input and output data form:

(Until now) : Evolution from exchanging sounds, to letters, to pictures, to movies, and to multimedia, following the law of transition to a higher-level system.

(In the future) brain waves, smells, and emotions can be recognized

-Controlling field

(Until now) controlling field developed from machine field to light field, haptic cell phone that inputs using light is sold in the market.

(In the future) it will develop into the direction of using a holographic keyboard and viewer, according to the law of degree of ideality, and cell phone use will deminish or disappear.

②The essential function of cell phone

-the evolution of the “communication”function

-(Until now) according to the law of transition to higher-level system

the cell phone function has evolved from “communication person to person”, to communication person to internet, to communication person to broadcast, to communication person to machine. Here the convergence phenomena are not only within the single system but also between industries appear and developinto the system of new dimension by chemical combination.

-(In the future) each communication function will be strengthenedaccording to the law of transition to higher-level system , the law of increasing dynamism (flexibility) and the law of increasing degree of ideality.

The digital camera attached to a cell phone has a normal digitalcamera function since it has over 1000 pixels. The game content will become more diversified,and there may be online interactive games between cell phone users. Wireless internet will be evolved to allow all the services practicable on the desk top, and using mobile wireless internet inside of a fast running car will be possible. Currently, one-way DMB service is changing into two way service, and the cell phone users can join in with the broadcasting while watching it. M-banking is getting more and more intelligent so that people can do all kinds of tasks through mobile devices. Off-line banks will gradually disappear.

③Cell phone convergence until now has evolved into new dimensions of a single system according to the law of transition to higher-level system and it will evolve into mono-bi-poly. (Standard solution 3-1-4)

How will it evolve after the cell phone “communication”function reaches the limitations of function evolution?

It will develop from Smartphone, to intellectual robot, to intellectual chip.

-The chip in the cell phone will be minimized and evolve into an intellectual chip by applying the law of increasing dynamism (flexibility), and it will help realize the future function of cell phone

④Cell phone convergence is evolving toward an ubquitous system.

Let us imagine a future cell phone predicted by the law of technology evolution. If you press a small button, a key board will be appear through holographic projection, and the hologram will show the an image of the caller. Then, without pressing any buttons, only by thinking, the cell phone will show the keyboardand screen through holographic projection. It will write e-mails and send them. The cell phone can accomplish various tasks intellectually for human being wheneverand wherever shown. It is noted that the cell phone convergence is going toward an ubquitous system as predicted by the theory of technology evolution. Ubiquitous can compute whenever or wherever, has various information input and output. It pursues an ideal system by working by itself without human interference. The cellphone could be used as a core device if it keeps developing with the understanding of the theory of technology evolution and the market.

3. Two evolution lines of mono-bi-poly

Two evolution lines of mono-bi-poly is explained for considering the diferent functions that are good to be combined in Digital convergence.

1) Combination of similar functions : increases the ideality of the system

Example) The black ball point pen has the function of “writing”. The efficiency of this function is increased if the pen has black and red colors, or even more than four colors.

2) The combination of opposite functions or different functions

Bi-and poly-systems can be enhanced by increasing the differences between their elements (Standard solution 3-1-3).

Example) The function of the pencil is “to write”. The opposite function is “to erase”. The combination of the two functions results in a pencil with an eraser.

Example) The function of a garlic press is “to crush garlic”. The opposite function is “to remove the crushed garlic from the garlic press”. The system with these two functions becomes a more efficient garlic press.

Example) Running shoes are used “to protect feet”. Another function could be “to transmit running information”. This information could be read by a sensor attached to the running shoes and sent to an iPod to display the distance, time,speed of running, and the pulse rate. This would be a combination of Nike shoes and aniPod.

4. What should be combined when combining the opposite or different function

-Consider the different functions that are good to be combined.

It is easy to predict the fusion of similar functions, but it is not easy to predict the fusion of opposite functions or different functions.

1)There are two common aspects of the combined functions.

First, the functionsof the system operate within the super-system and the sub-system. Second, each function works simultaneously or independently as appropriate. Thus, the various needs of the customer or the system at different times can be analyzed within the super-system and sub-systems of the current system. These needs become candidates for combined functionality. They become the fresh ideas for an inventor.

Example) Cell phones and games

Cell phones have the function of “calling (communicating)”. What other functions could be combined with a cell phone? The following table shows the results of analyzing the super-system and sub-systems of a cell phone at different times and circumstances:

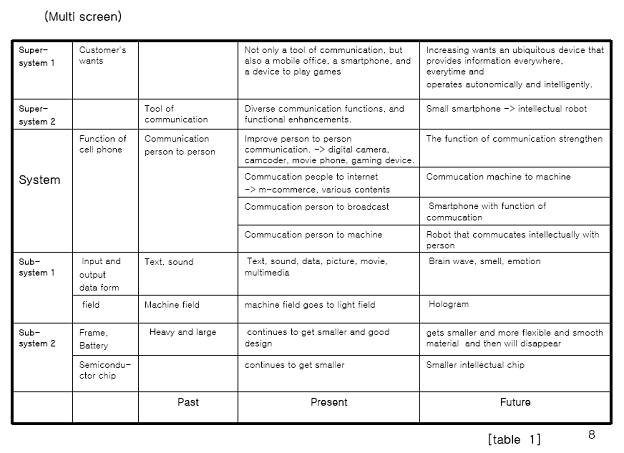

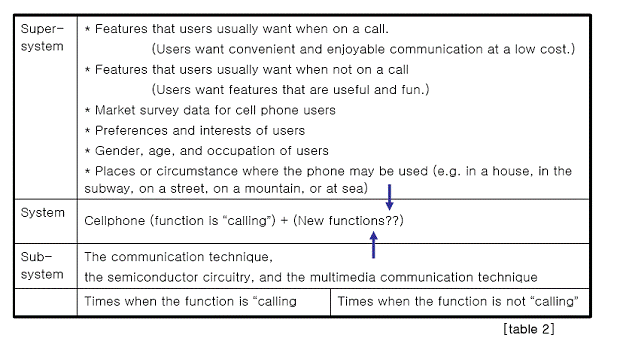

By using multi-screen thinking, it is imagined that cell phone users would desire doing something fun at home or in the subway when not on a call.Adding game functions to cell phones can be realized by developing the communication technique, the semiconductor circuitry, and the multimedia communication technique. So, an additional function of the cell phone is to “play games”.

2) What is important is to discover the useful functionshidden in the system.

Multi-screen thinking is very effective, since this new function was discovered by analyzing the super-system and sub-systems at different times. So, there is a systematic way for inspiring new ideas. Countless system functions can be found in this way.

Example) Discovering other functions for a cell phone

A cell phone’s function is usually “to call (to communicate)”. Various functions can be found using the multi-screen approach to consider the super system of the cell phone at different times and circumstances. Thus, there are examples of specialized cell phones that are useful for specific people and places such as sports centers, schools, hospitals and construction sites. There are examples of cell phones with functions appropriate for different genders, ages, and generations. And there are examples of cell phones that integrate aspects of the culture of various countries.

Bad example) Combining TV with microwave ovenhave failed in market.The functionsof the system don’t operate within common the super-system. When we watch TV or not, we rarely want to use a microwave oven, or when we use a microwave oven or not, we rarely want TV.

3) Continuous combination does not necessarily increase the ideality.

The system will become complicated, and the cost will grow if combination continues. The efficiency will also be decreased because of the inconvenience.

Example) Many functions are added to cell phones by continuous combination. However, these functions are not always enjoyed by all users. Therefore, the number of users looking for the product with only one specified function is increasing.

5. What should be considered for deciding the system function

appropriate for fusion in digital convergence?

* IFR of technology = efficiency / (cost+problem)

* Value of market= (efficiency + aesthetic) / (cost+problem+time)

In case of analyzing the trends of cell phone convergencec, and predicting its future(table 1), when only mono-bi-poly of technology evolution is applied,

the trends of digital contents don’t appear in multi screen. Digital contents can’t be explained by the law of technology evolution because it is in only the value of market.

Thus,for successful digital convergence, mono-bi-poly technology evolution must be applied to a system and also the demand of the market must be understood sensitively.

1)The market is the super-system, technology is the sub-system.

Technology pursues only high efficiency and low price. However, in this time of convergence, customers pursue the following values alongwith high efficiency and low price.

These values are humanism, entertainment, culture, precious values, feelings, personality, autonomic participation, and customer produced values. The user interface which connects the user to the system should be simple and easy. Finally, the consumer can pursue happiness.

Marketing is the super system, and technology is the sub-system.

With the table above, we can see that IFR of technologyis part of market value. The marketing elements of the super-system, and the technology of the sub-system concurrently effect the ultimate function (concept) of the system. The super-system can be analyzed in greater or lesser detail than is shown in the table above.

2) A successful and failed case of digital convergence

We can remember dot com businesses in the early 2000s. Although it was a few years ago, the internet was popularized very fast once the world-wide-web was developed.

It was certain that the internet was an innovative technology that would overcome the limitations of time and space. However, people were unfamilier with it, found it difficult to use, and didn't trust doing business on it. Dot-com companies that trusted only the newest technologies failed in thier business.

But recently Information Technology is one of the most important elements leading digital convergence. The products that combined both IT and an analysis of the trend of the market super-system succeeded.

IPod could succeed because they have cooperation with iTunes (contents provider)

So Apple gives consumers a piece of music that is 99 cents. It is very cheap. IPod’s cooperation with iTunes can distinguish it from others. In this time of convergence, when Apple combined a huge trend of "feeling" with the latest technology, they got a powerful synergy.

A few months ago, the PRADA cellphone made by LG was very popular. They sold notonly the function of a cell phone, but also the value that "I amspecial" using the brand PRADA.

The number of people using DMB in cell phones, and the number of games available in cell phones are increasing quickly. They are combined with the needs that people have to enjoy fun and useful things conveniently anywhere and anytime.

As we see in this example, digital convergence isn’t limited only to the combination of devices. It also combines various values of customers, and it continues to make new advances.

ПОСЛЕСЛОВИЕ КАФЕДРЫ ПРОГНОЗОВ

Тема мобильных телефонов, конечно, не может оставить равнодушным ни одного футуролога.

Это товар, который демонстрирует потрясающую скорость развития по сравнению с другими ТС как новейшей истории техники (ХХ столетие), так и всей предшествующей. Мобильный телефон – «чемпион по скорости развития».

Может быть мы когда – то научимся измерять эти скорости и тогда сможем как-то эту гипотезу доказать? J

КП тоже обращалась к теме мобильных телефонов. Отличие подходов, которые использованы в работе Мсс. Канг и профессора Юнга обусловлено использованием другой системы классификации феномена объединений.

Тренд «моно - би – поли» верно служил пользователям ТРИЗ на протяжении почти 35 летней истории и будет служить дальше.

Но ЗРТС как научная дисциплина не стоит на месте. КП использует другую, более сложную систему классификации, которую можно продемонстрировать в виде диаграммы.

Эта классификационная система является результатом многолетних коллективных научных исследований, которые проводятся исключительно на добровольных началах, и опирается на банки примеров того или иного вида объединений. Требование к примерам принципиально отличается от первоначально сложившегося подхода в классической ТРИЗ. Мы исследуем не патентные фонды, а только историю ТС, которые хотя бы однажды стали товарами.

Цель этой коллективной работы – создание открытого справочника по феномену объединения. Чем – то этот подход напоминает построение операционной системы Linux.

Мечта КП – включить в число волонтёров не только русских ТРИЗ экспертов, которые оказывают посильную помощь в формировании такого справочника, но и корейских.

Не поленюсь поблагодарить своих коллег, которые присылают мне примеры: А.Кынин, В.Леншин, Н.Фейгенсон, В.Петров, В.Павлов, О. Хомяков.

Для достижения этого замысла нужна площадка «культурного слияния», которые мы и пытаемся построить сегодня. Это будет непросто хотя бы из-за языковых барьеров. «Мысль изречённая есть ложь», а мысль, переведённая - всегда не совпадает буквально по смыслу с оригиналом. Но недавно узнанная мной корейская пословица гласит: «нельзя выращивать сад, сидя в тени».

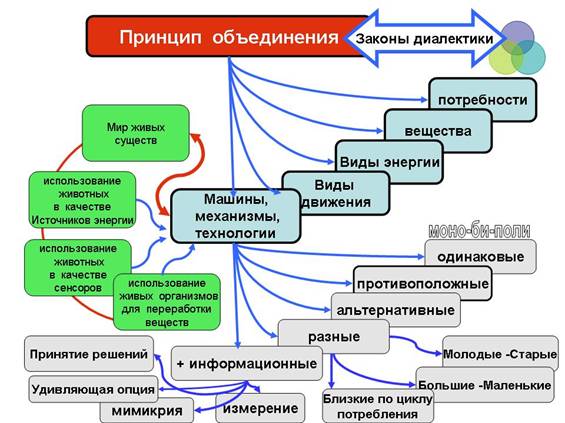

Общая структура справочника приводится ниже и в настоящий момент наполняется подготовленными примерами. Многие гиперссылки пока не установлены, что будет сделано в ближайшие 3 месяца.

МАТЕРИАЛЬНЫЕ РЕСУРСЫ СИСТЕМНЫЕ РЕСУРСЫ ТС + ТС ТС + БИОСИТЕМЫ
Вещества аддитивное объединение Одинаковые (умножение) Биосистемы для переработки веществ
Поля (виды энергии, вес) Появление ИЭ в ТС

Два процесса

Одинаковые: Большой + маленький Биосистемы как источники энергии
Пространство Повороты осей Разные, близкие по циклу Два процесса Ж→ТС ТС→Ж
Время (Движение) Неаддитивное объединение Разные , по возрасту
Информация (Потребности) Объединение с СУ

(роботы, умные вещества)

Мимикрия

Объединение ТС и рыночных явлений

Биосистемы как сенсоры
Информация (Цена) Объединение ТР+РО

(тримминг)

Ребрендинг
Информация (научная) ВМ как аккорды Законов и Принципов Объединение с измерительными системами
Информация (достоинства) Объединение в ЗОО Техноценозы
Информация (история техники) диалектика повторы Объединение в ЗПКК Противоположные
Информация (финансовые системы) Объединение в ЗЕБП Альтернативные

Сокращения, использованные в таблице будущего справочника:

ЗЕБП – Закон Гегеля 1 , закон единства и борьбы противоположностей

З П К К – Закон Гегеля 2 , закон перехода количества в качество

ЗОО – закон Гегеля 3, закон отрицания отрицания или закон двойного отрицания

ИЭ – источник энергии, СУ – система управления, ТР – трансмиссия, РО – рабочий орган, Ж – «живое» или биологические системы и технологии.

В ближайшее время Кафедра Прогнозов имеет намерение делать публикации об этом справочнике.

Добро пожаловать в добровольное (теперь, как я надеюсь русско - корейское) сообщество ТРИЗ футурологов.

С уважением,

Ведущий рубрики КП,

Юрий Даниловский.
